Motogadget mo.Blaze Disc bar end LED indicator (left-hand side)
Motogadget mo.Blaze Disc bar end LED indicator (left-hand side)
Motogadget mo.Blaze Disc bar end LED indicator (left-hand side)
Motogadget mo.Blaze Disc bar end LED indicator (left-hand side)
Motogadget mo.Blaze Disc bar end LED indicator (left-hand side)
Motogadget mo.Blaze Disc bar end LED indicator (left-hand side)
Motogadget mo.Blaze Disc bar end LED indicator (left-hand side)
Our Price: £89.95
BLACK
POLISHED
+
Quick Code: MOTO6002021

Always make sure to order a complete set consisting of the left and right side turn signal assembly!

Have a Question?
Delivery Info
Returns Info

ABOUT MOTOGADGET

For many years Motogadget is synonymous with high quality instruments and innovative accessories for the motor bike market. Their product’s outstanding design, features, material and finish make us premier choice for many modders, customizers and bike enthusiasts.

Many of their products are either completely unique or only available from us in certain configurations or dimensions. The product portfolio includes but is not limited to analogue and digital multi functional instruments, electronic switching and control elements, glassless rear-view mirrors, turn signals, push button controls and much more!

Description

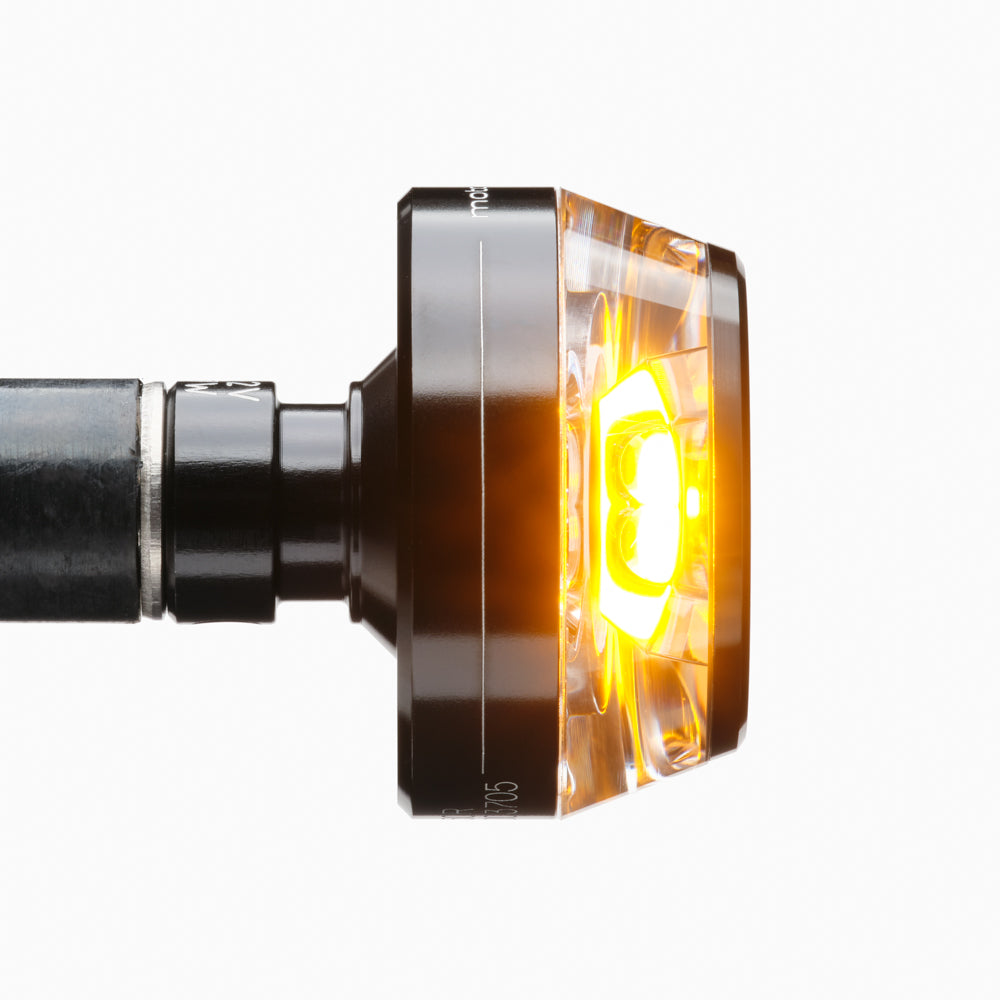

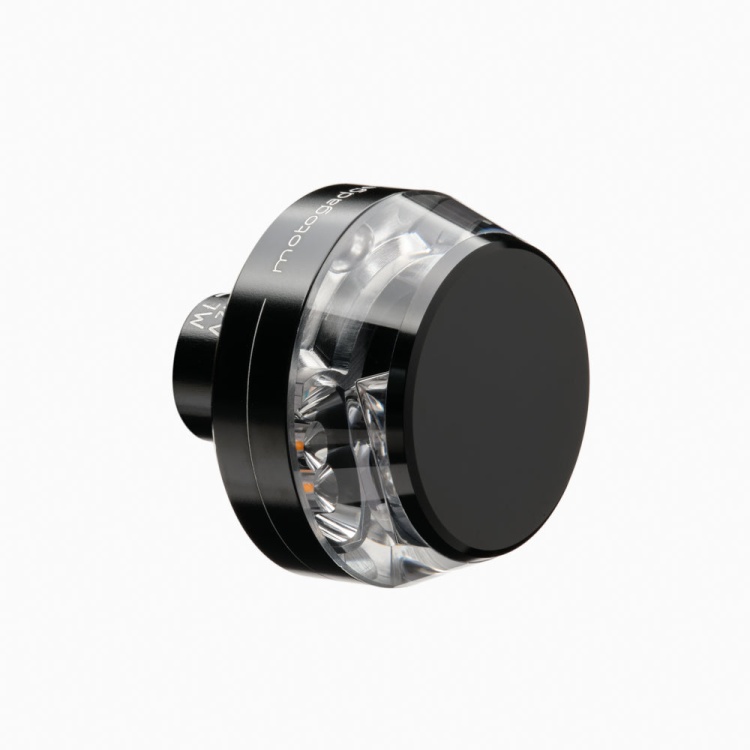

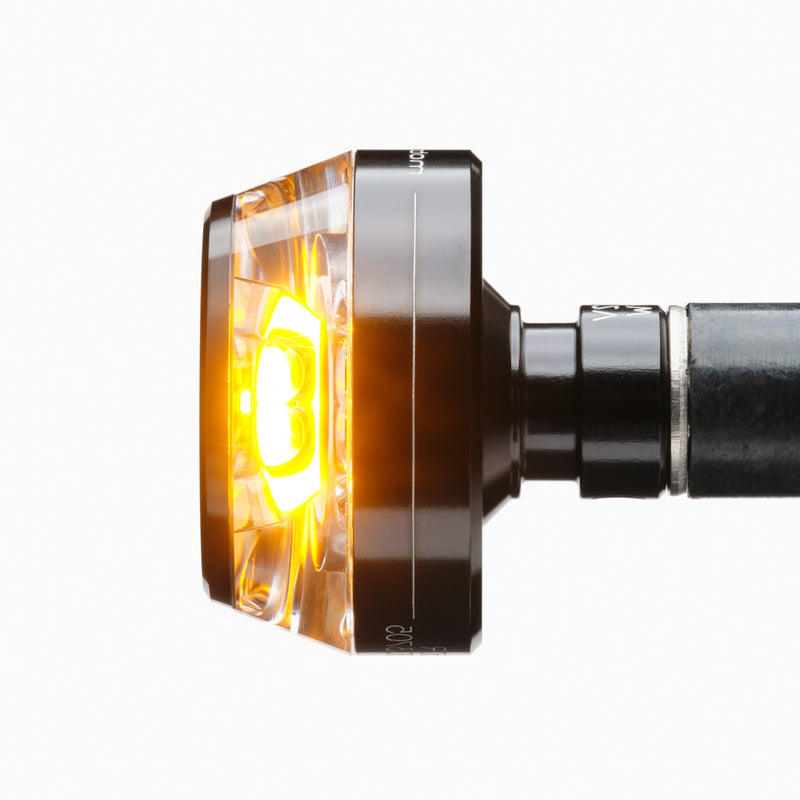

The mo.blaze disc is the flashing signal light of the latest generation. The characteristic feature of the LED turn signal is the transparent illuminated disc on a compact aluminum base, which harmoniously closes with the handlebar end grip.

Our now third turn signal, which uses the new TranzLight technology (TLT, patent pending). This progressive development approach is not limited to simple miniaturization of turn signal housings, but designs the light directly via a crystal-like plastic body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this novel design and its function possible.

The light flux required for the TranzLight principle is generated by the motogadget's intensiLED® process and consists of three important components three important components:

  • Selected high power LEDs with maximum efficiency and a total power of 7W with a lifetime of more than 50,000 hrs.
  • An IC controlled constant current regulation clocked at 330kHz.
  • A special collimator optics, which couples the light of the LED precisely into the plastic body

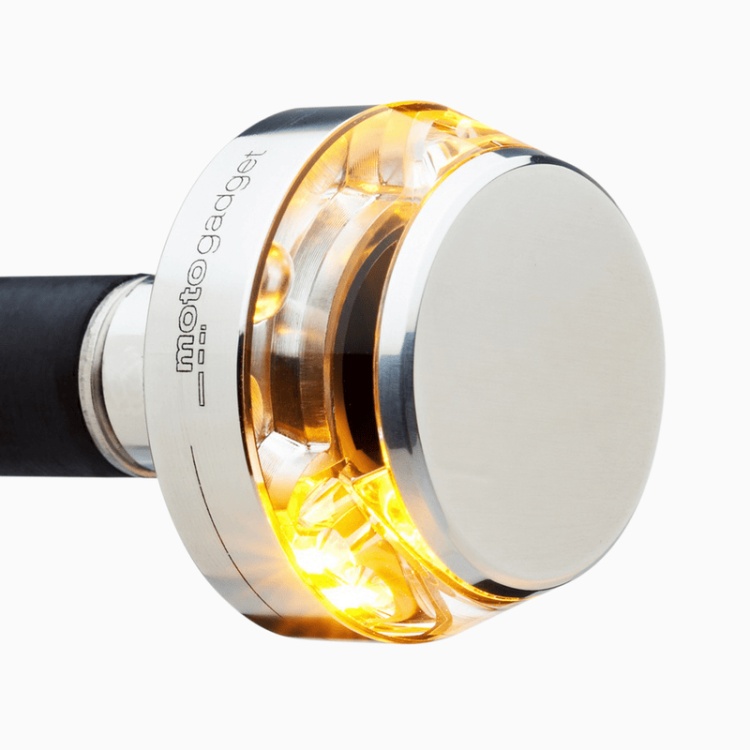

The discreet aluminum housing is only used for the stable mounting of the glass body and the integration of control electronics and high-end LEDs. Of course, the housing is CNC-manufactured, black anodized or highly polished and finely inscribed by laser.

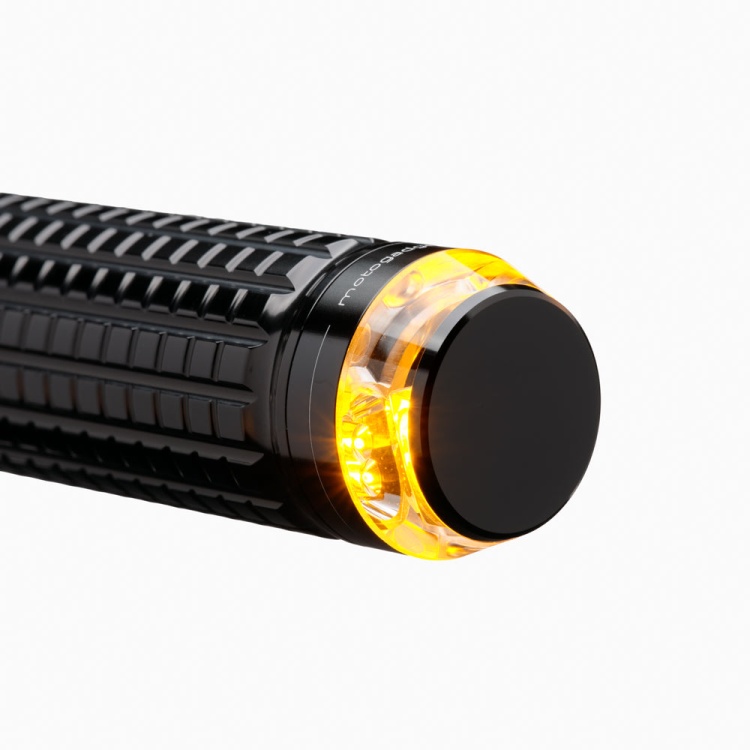

The handlebar end turn signal builds very flat and appears through the transparent disc neutral and inconspicuous. Thus, it fits many styles and the most diverse motorcycles. The flasher can be operated like any other LED flasher with load resistors or all our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+).

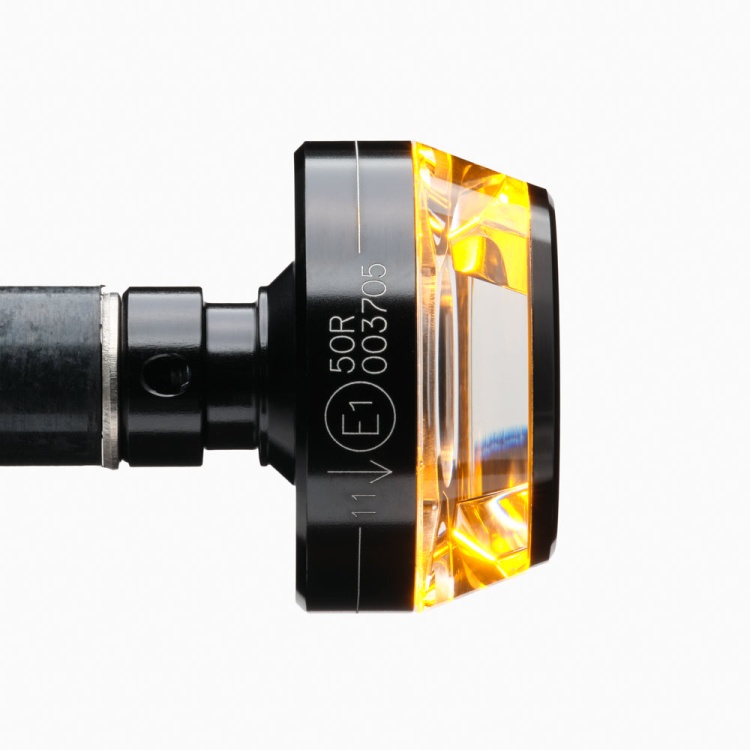

The handlebar end turn signal mo.blaze disc presented here has an E mark and is approved as a front turn signal according to ECE.

Specification:

  • Diameter: 35 mm
  • Total length over all: 68 mm
  • Partial length outside the handlebar: 20 mm
  • Partial length inside the handlebar: 48 mm
  • Cable length: approx. 100 cm

Always make sure to order a complete set consisting of the left and right side turn signal assembly!

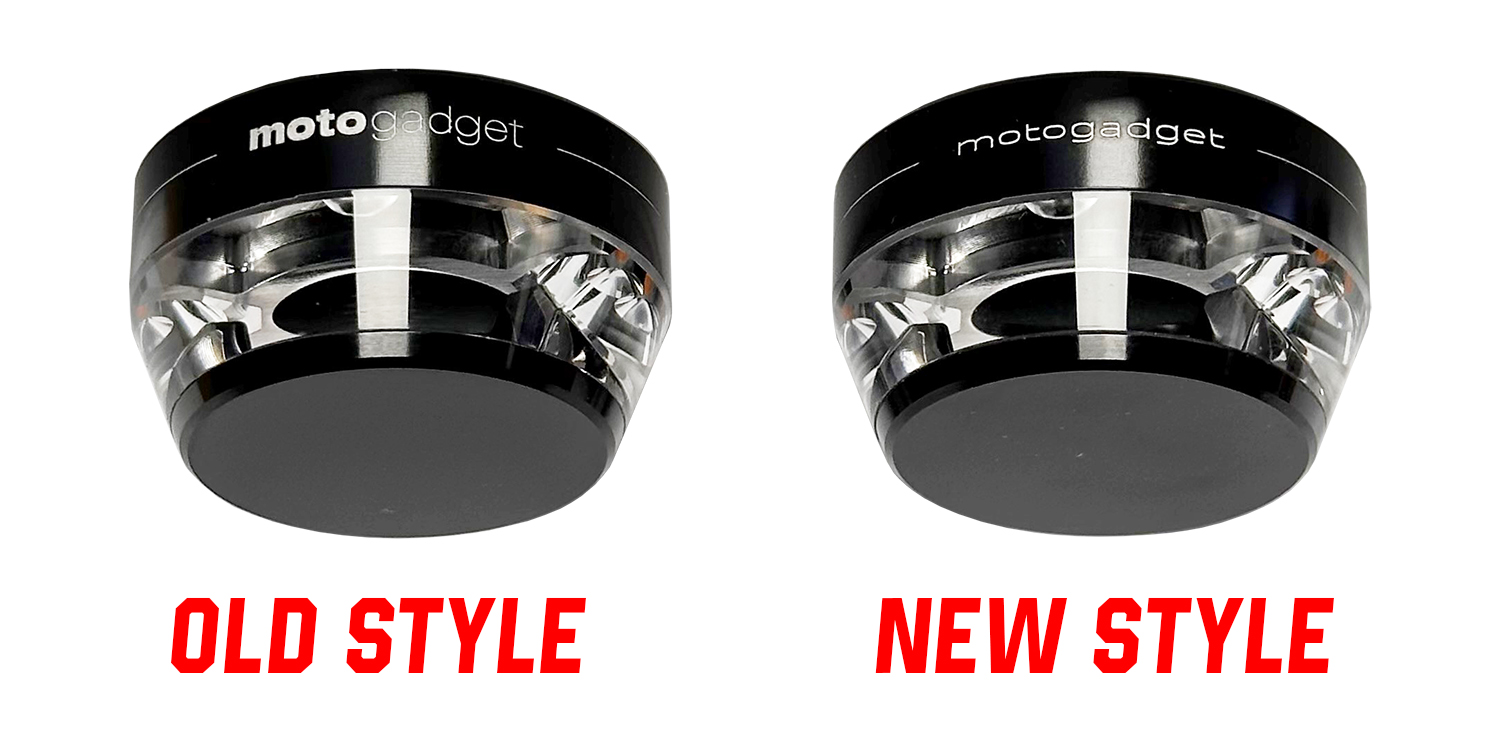

This product has just been revised with a new logo and has been superseded to a new part number. See the image below for a comparison between old and new style.
