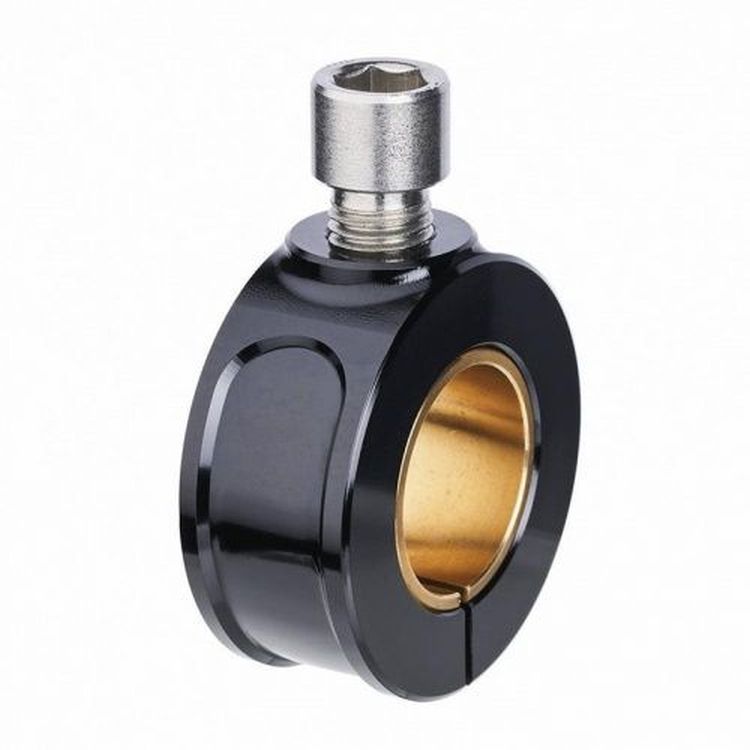

The m.view bar clamp enables the mounting of all m.view mirrors with 150 mm stem. It is clamped on the handlebar tube. The mirror stem is then securely attached to it with the stainless steel screw M10 x 1,25. The m.view bar clamp is suitable for a m.view classic, m.view club, m.view sport, or m.view race.
It is CNC machined from billet aluminum and black anodized.
The clamping on the handlebar is done by a M5 stainless steel screw, which guarantees a stable installation.

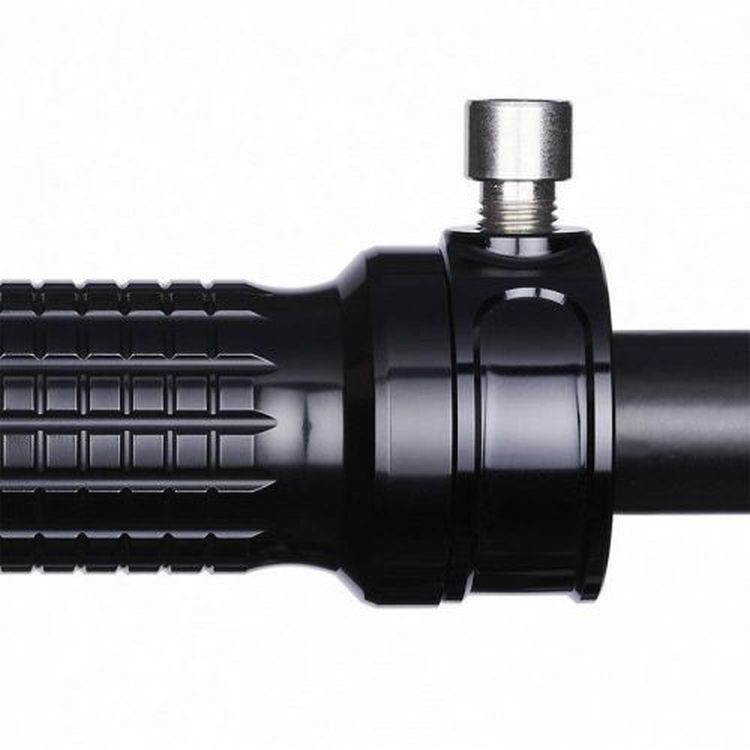

The m.view bar clamp is delivered as a single piece. It fits perfectly to our handles m.grip, the handlebar end indicator m.blaze disc as well as the push button gear m.switch and m.switch mini. The assembly is done directly on the handlebar tube (22 mm, 7/8 and 1 inch).
For two mirrors please order 2 m.view bar clamps.
- Fits all 22 mm, 7/8 and 1 inch handlebars.
- Outer diameter: 43 mm
- Width: 19 mm
- Weight: 76 g
- Fixing screw for mirror fits all m.view mounting mirrors with 150 mm arm
Scope of delivery
1 x m.view bar clamp, screw M10 x 1,25, manual
