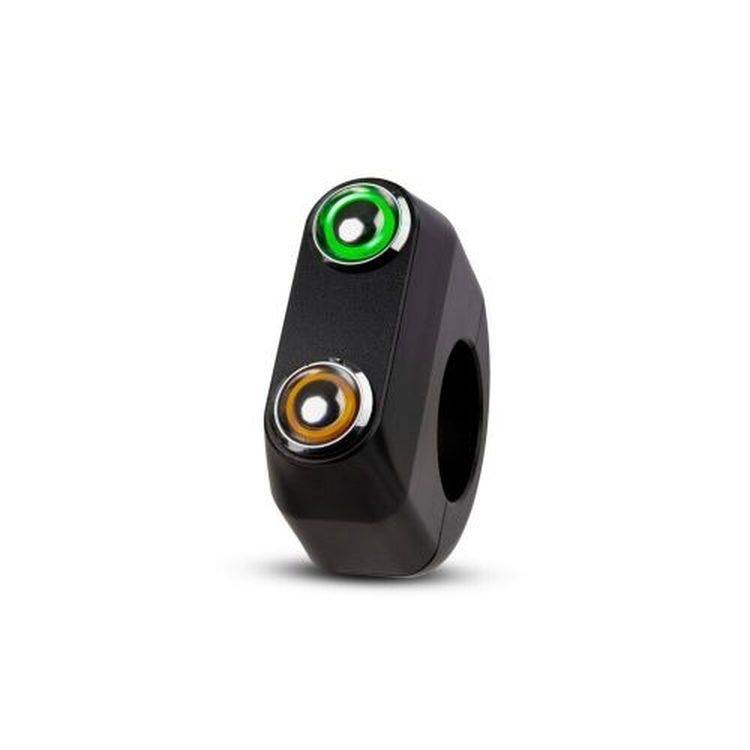

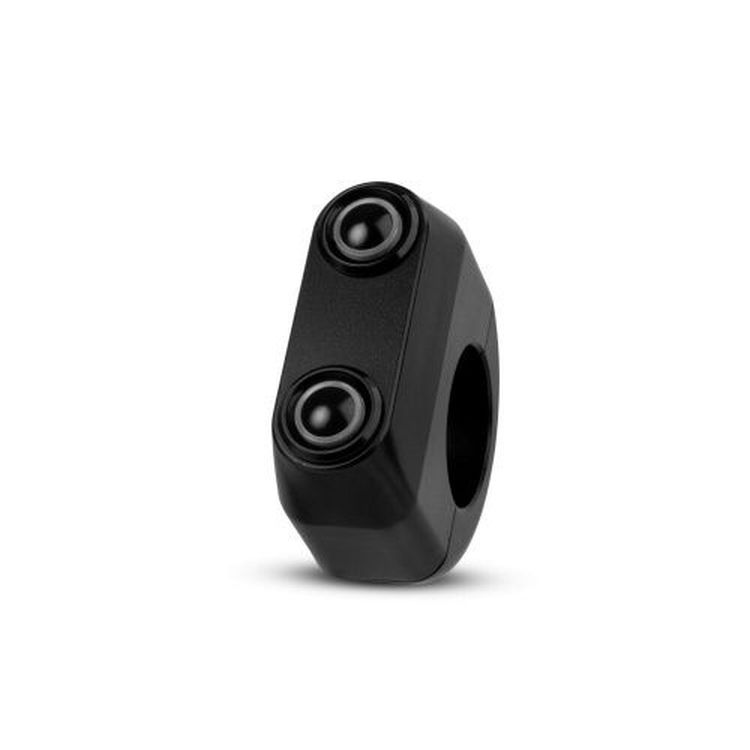

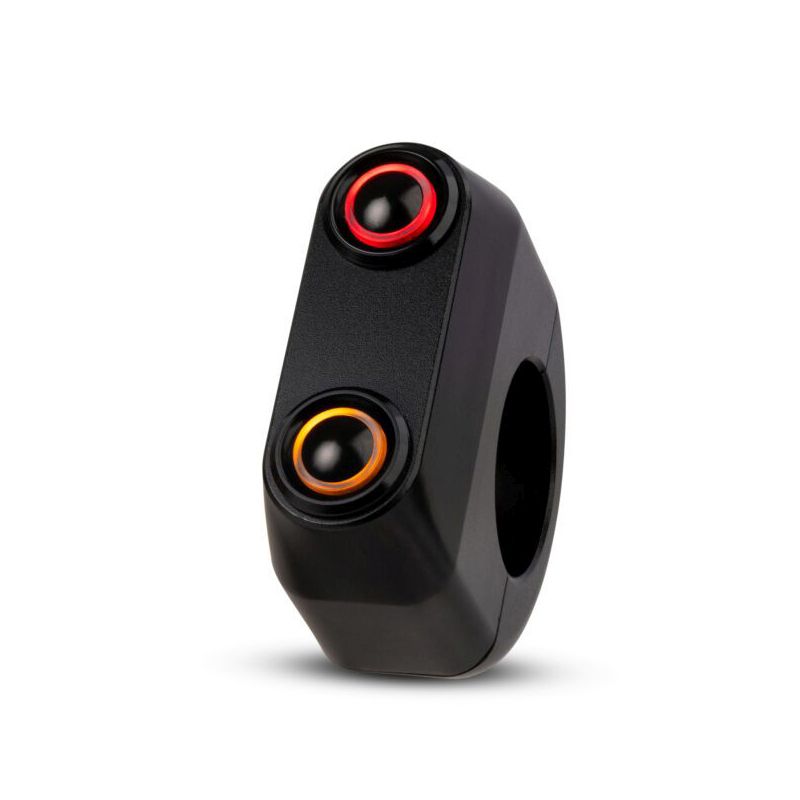

Motorcycle handlebar control switches with built-in LED indicators.
The rebel switch combines sleek and minimalistic design with great functionality. Perfect if you are building a café racer, scrambler or any other bike and want a cool clean look. Choose between black anodized or polished finish and combine it with push buttons of the same colour and finish. Alternatively, you can mix it up by choosing e.g. the polished housing and black push buttons.
The housing is CNC machined out of aircraft grade aluminium and is available for 22mm (7/8”) and 25.4mm (1”) handlebar diameters.

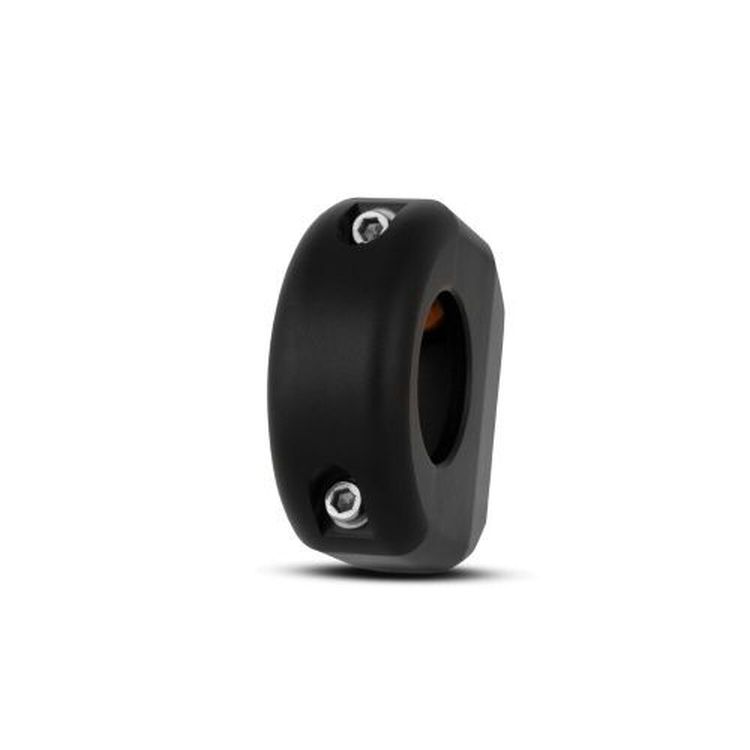

Each housing has two momentary push buttons designed to be used together with a control box, like the m-Unit from Motogadget and can be used to control turn signals, lights, starter, horn and anything else you can think of. The push buttons are rated at 1A and are IP65, which means they can withstand rain and dust. The rebel switch is mounted to the handlebars using two 3mm stainless bolts, which of course are included.
- Protection Level: IP65
- Max. Current: 1A
- LED Color: yellow, green, blue, red
- LED voltage 9-24V
- Dimensions L x W x H (cm): 4.6 x 1.9 x 4.6
- Handlebar diameter: 22mm (7/8”) or 25.4mm (1”)
You can choose between yellow, green, blue and red LED indicators. How you set it up is entirely up to you, but for inspiration we prefer the following setup on our bikes:
Left side of handlebar
Top – Lights. Blue LED (high beam)
Bottom – Left turn signal. Yellow LED (flashes when active)
Right side of handlebar
Top – Horn. Green LED (neutral)
Bottom – Right turn signal. Yellow LED (flashes when active)
Price is for one unit
The setup and position of the LED push buttons in the switch housing can be fully customized during installation. The order of the LED colour selection above is therefore not relevant. Just pick the colours you would like, and when you install the rebel switch you set it up in the way you want.
